| Hardware |
| CPU | Industrial-grade 32-bit communication processor |
| DRAM capacity | 64MB | Flash capacity | 16MB |
| Cellular Interface |
| Modem | 1 × LTE Cat4 | SIM | Standard drawer-type |
| Number of Antennas | 1 |
| Ethernet Interface |
| Number of Ports | 1 × 10/100 Mbps, Ethernet | Configuration | 1×WAN/LAN |
| Wireless Interface |
| Standards | 802.11 b/g/n | Frequency Bands | 2.4 GHz |
| Speed | 150Mbps | Security | WPA, WPA2 |
| Antennas | 2 | Connector | RP SMA-K |
| Serial Interface |

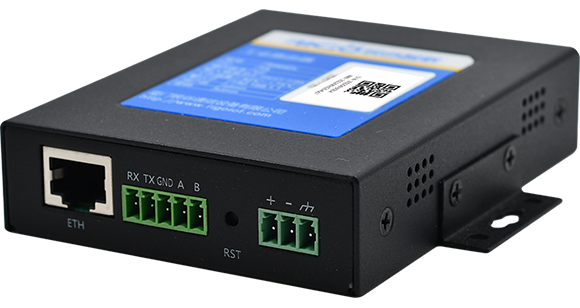

| Type | 1 × RS-232 or 1 × RS-485 serial port | Socket Form | 5-pin pluggable terminal(3.5mm pitch) |
| Signal Definition | RX, TX, GND (RS-232) ; A+, B-, GND (RS-485) | Baudrate | RS232 (300-115200bps), RS485 (300-115200bps) |
| Power Supply |
| Standard Power Supply | DC 12V/1A | Power Supply Range | DC 6-35V |
| Standby Power | 120mA@12VDC | Average Power | 150mA@12VDC |
| Peak Power | 200mA@12VDC | Maximum Power Consumption | 2.4W |
| Software |
| Auto Fail-over | between wan,cellular and WIFI |
| Network Access | APN, VPDN |
| Access Authentication | CHAP/PAP/MS-CHAP/M S-CHAPV2 |
| LAN Protocol | ARP, Etherne |
| WAN Protocol | Static IP, DHCP, PPPoE |
| VLAN | VLAN Management |
| IP Application | Ping, Traceroute, DHCP Server/Client, DNS Relay, Dynamic DNS,
Telnet, SSH, HTTP, HTTPS, TFTP, FTP, SFTP, NAT |
| IP Routing | Static routing, dynamic routing |
| VPN | IPsec, L2TP/PPTP, GRE, OpenVPN, N2N |
| Firewall | NAT, PAT, DMZ, Port mapping, IP filtering, Port filtering, MAC filtering |
| Hot Backup | Link switching for 4G wireless networks, Wi-Fi, and wired Ethernet |
| Link Detection | TCP/Ping heartbeat detection, VPN link detection,
disconnection automatic connection |
| QoS Management | Upstream and downstream bandwidth restrictions |
| Embedded Watchdog | Equipment operation self-test, equipment operation fault self-repair |
| DTU | Built-in software DTU function |
| WLAN | IEEE 802.11 b/g/n
AP, Client working mode
Open system, shared key,WPA/WPA2 authentication |
| Traffic Management | Real-time Traffic Statistics
Monthly Traffic Statistics
Traffic Limit Settings |
| Scheduled | Timed restarts |
| SNMP | SNMP v1/v2c/v3 |
| Configuration and Maintenance | Web Management
Telnet and SSH terminal system status monitoring
NTP client, support equipment system clock network synchronization
Support Rigoiot Device Cloud platform remote management
Configuration import and export
Network tools: Ping, Tracert |
| Firmware Management | Firmware upgrade, support local (HTTP/ serial) and remote upgrade |
| Event Alarms | System logs, application logs |
| Others |
| Reset Button | With this button, the parameter configuration of the device can be restored to the factory values |
| Interface | Terminal power seat, built-in reverse polarity protection and overvoltage protection |

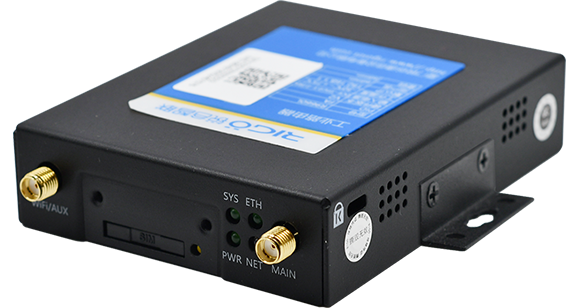

| LED Indicators | PWR × 1 ,ETH × 1,SYS × 1 ,NET × 1 |
| Physical Characteristics |
| Housing | Metal, protection rating IP30 | Weight | 210g |
Dimensions (W×D×H)
| 100 × 78 × 22(mm) (not including antenna and mounting parts) | Installation | Wall mounting |
| Operating Temperature | -30 ~ +75 °C | Storage Temperature | -40 ~ +85 °C |
| Relative Humidity | 5 to 95%(non-condensing) |
